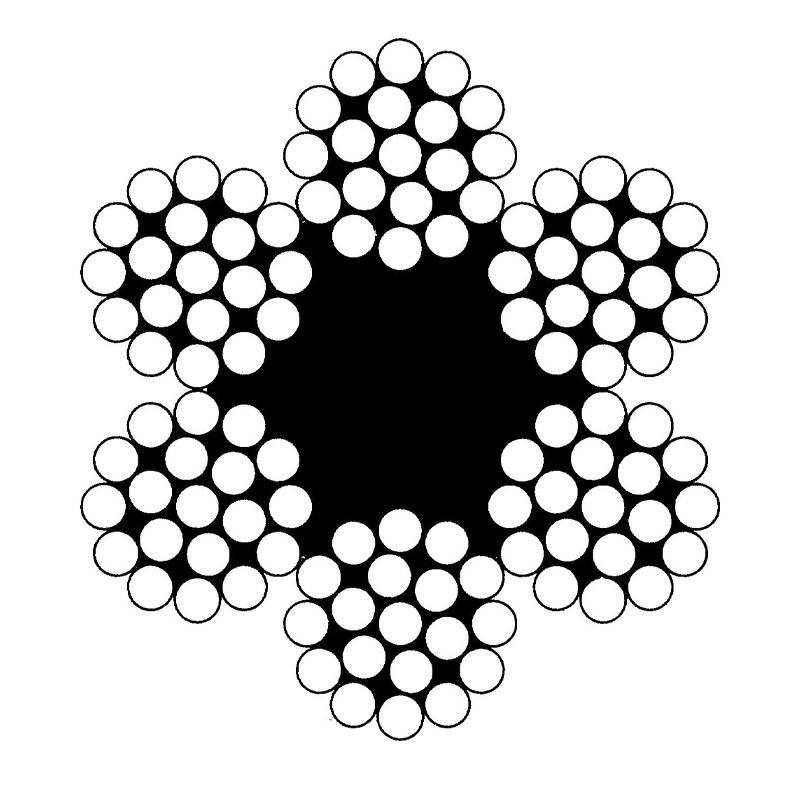

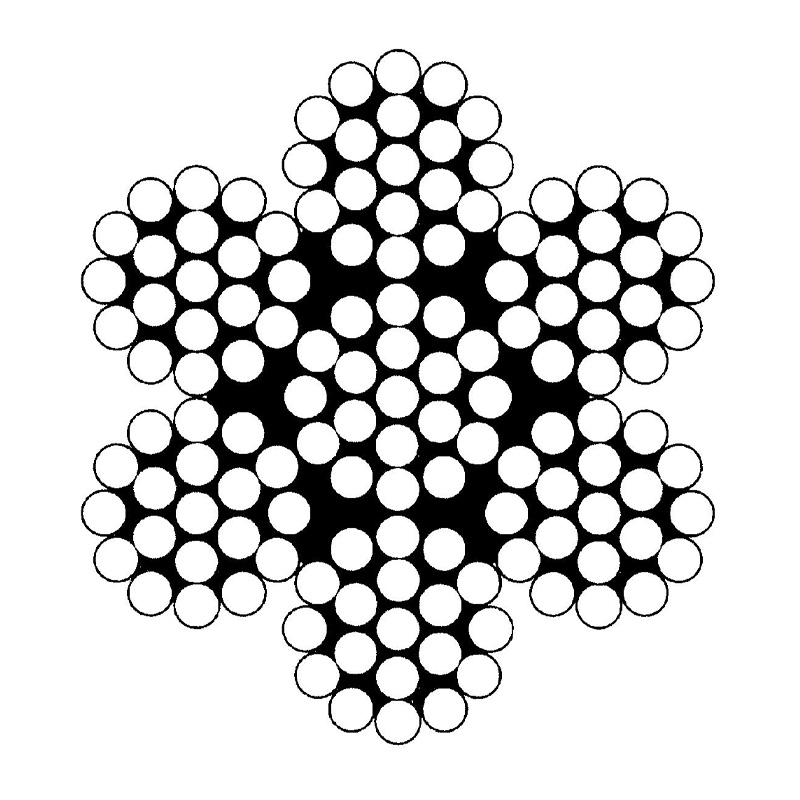

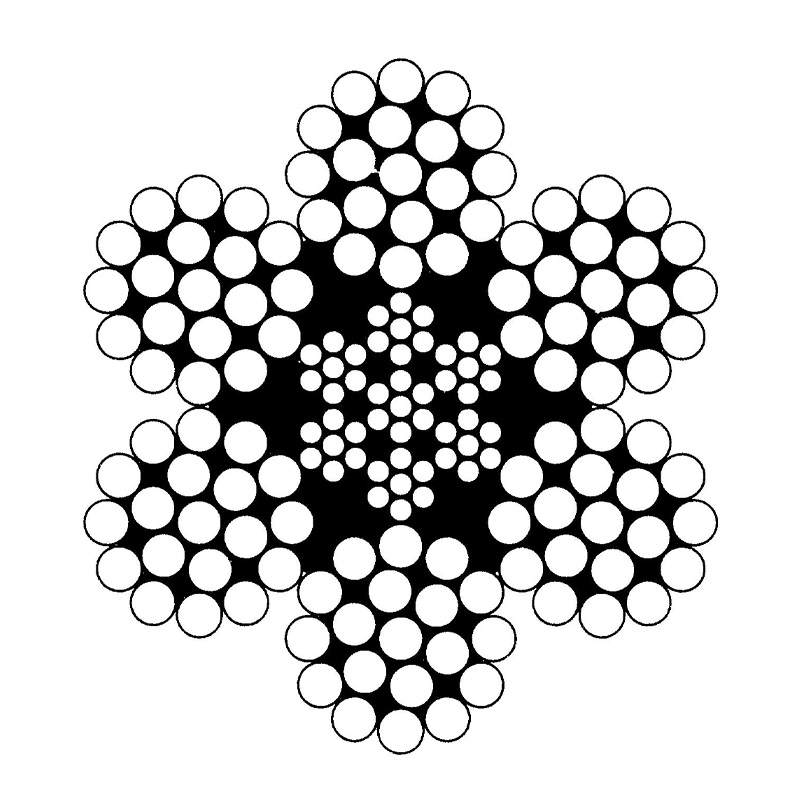

| DIN3060 6x19 FC, 6x19 IWRC oder WSC | ||||||||
| Nenndurchmesser | Ca. | Nennzugfestigkeit | ||||||
| Gewicht | 1570 N/mm2 | 1770 N/mm2 | 1960 N/mm2 | |||||
| kg/100m | Mindestbruchfestigkeit (KN) | |||||||
| mm | FC | IWRC | FC | WSC | FC | WSC | FC | WSC |
| 2 | 1.38 | 1.52 | - | - | 2.18 | 2.35 | 2.41 | 2.6 |
| 2.5 | 2.16 | 2.38 | - | - | 3.4 | 3.67 | 3.76 | 4.06 |
| 3 | 3.11 | 3.42 | - | - | 4.9 | 5.29 | 5.43 | 5.86 |
| 4 | 5.54 | 6.09 | - | - | 8.7 | 9.4 | 9.63 | 10.4 |
| 5 | 8.65 | 9.52 | - | - | 13.6 | 14.7 | 15.1 | 16.3 |
| 6 | 12.5 | 13.8 | - | - | 19.6 | 21.2 | 21.7 | 23.5 |
| 7 | 17 | 18.7 | - | - | 26.7 | 28.8 | 29.6 | 31.9 |
| 8 | 22.1 | 24.3 | 30.9 | 33.3 | 34.8 | 37.6 | 38.5 | 41.6 |
| 9 | 28 | 30.8 | 39.1 | 42.2 | 44.1 | 47.6 | 48.8 | 52.7 |
| 10 | 34.6 | 38.1 | 48.2 | 52.1 | 54.4 | 58.8 | 60.2 | 65.1 |
| 11 | 41.9 | 46.1 | 58.4 | 63.1 | 65.8 | 71.1 | 72.9 | 78.7 |
| 12 | 49.8 | 54.8 | 69.5 | 75 | 78.3 | 84.6 | 86.7 | 93.7 |
| 13 | 58.5 | 64.3 | 81.5 | 88.1 | 91.9 | 99.3 | - | - |
| 14 | 67.8 | 74.6 | 94.6 | 102 | 107 | 115 | - | - |
| 16 | 88.6 | 97.4 | 124 | 133 | 139 | 150 | - | - |
| 18 | 112 | 123 | 156 | 169 | 176 | 190 | - | - |
| 20 | 138 | 152 | 193 | 208 | 218 | 235 | - | - |
| 22 | 167 | 184 | 234 | 252 | 263 | 284 | - | - |
| 24 | 199 | 219 | 278 | 200 | 313 | 338 | - | - |
| 26 | 234 | 257 | 326 | 352 | 368 | 397 | - | - |
| 28 | 271 | 298 | 378 | 409 | - | - | - | - |
| 30 | 311 | 343 | 434 | 470 | - | - | - | - |
| 32 | 354 | 390 | 494 | 534 | - | - | - | - |
| 36 | 448 | 494 | 625 | 675 | - | - | - | - |
