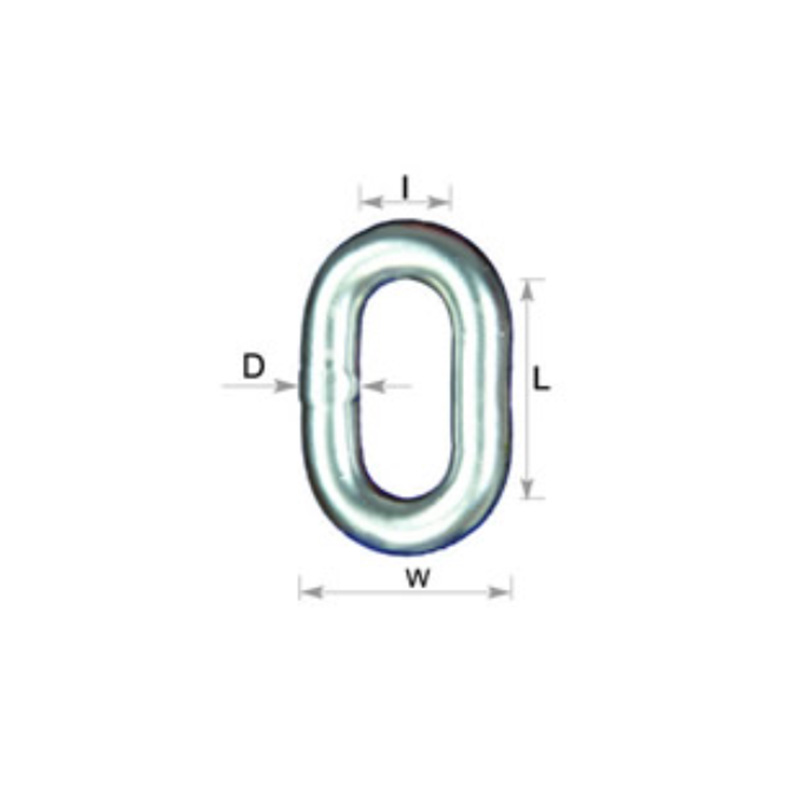

| Nenngröße | Innenlänge | Außenbreite | Arbeitslastgrenze | Min. Brechende Kraft | Gewicht | Art des Links |
| D | L | W | ||||
| mm | mm | mm | kg | N | kg/100m | |
| 2 | 12 | 8 | 20 | 1.250 | 7 | A |
| 22 | 6.1 | C | ||||
| 2.5 | 14 | 10 | 30 | 2.000 | 11.4 | A |
| 24 | 9.9 | C | ||||
| 3 | 16 | 12 | 40 | 2.800 | 16.3 | A |
| 26 | 14.4 | C | ||||
| 3.5 | 18 | 14 | 60 | 3.850 | 23 | A |
| 28 | 20 | C | ||||
| 4 | 19 | 16 | 80 | 5.000 | 28.6 | A |
| 32 | 24.9 | C | ||||
| 4.5 | 20 | 18 | 100 | 6.300 | 44 | A |
| 34 | 37 | C | ||||
| 5 | 21 | 20 | 125 | 7.750 | 48.2 | A |
| 35 | 40.8 | C | ||||
| 5.5 | 23 | 22 | 140 | 9.500 | 59.2 | A |
| 38 | 53 | C | ||||
| 6 | 24 | 24 | 160 | 11.500 | 74.4 | A |
| 42 | 61.5 | C | ||||
| 7 | 28 | 28 | 220 | 15.000 | 101.3 | A |
| 49 | 83.7 | C | ||||
| 8 | 32 | 32 | 320 | 20.000 | 125.7 | A |
| 52 | 108 | C | ||||
| 10 | 40 | 40 | 500 | 31.000 | 189.1 | A |
| 65 | 164 | C | ||||
| 12 | 48 | 48 | 700 | 45.000 | 291 | A |
| 78 | 248.8 | C | ||||
| 13 | 52 | 52 | 800 | 53.000 | 344.7 | A |
| 82 | 297.7 | C |
